  • WIDIA/KENNAMETAL GT005004 M6-1.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

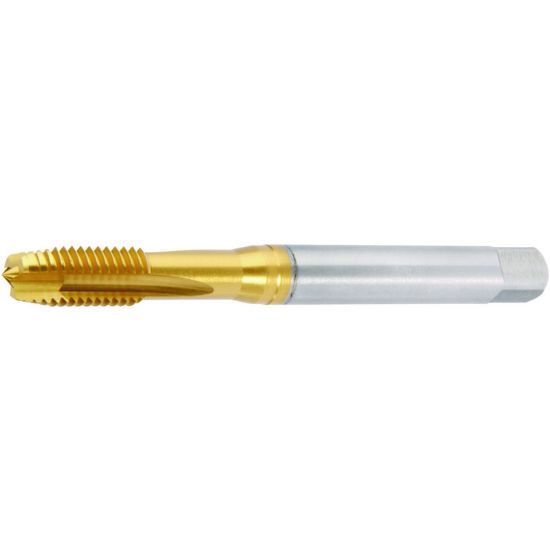

Picture of WIDIA/KENNAMETAL GT005004 M6-1.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT005004 M6-1.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT005004
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Made In USA No
Package Size 1
Performance Rating High Performance
Coating TiN
Shipping State Ohio
Dimensional Specifications
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Overall Len 3.1560 80.16MM
Tap Type Plug
Thread Type Metric
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Cut Rating <40HRC Steel, Stainless Steel
Thread Size M6
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
