  • WIDIA/KENNAMETAL GT005003 M5-0.80MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

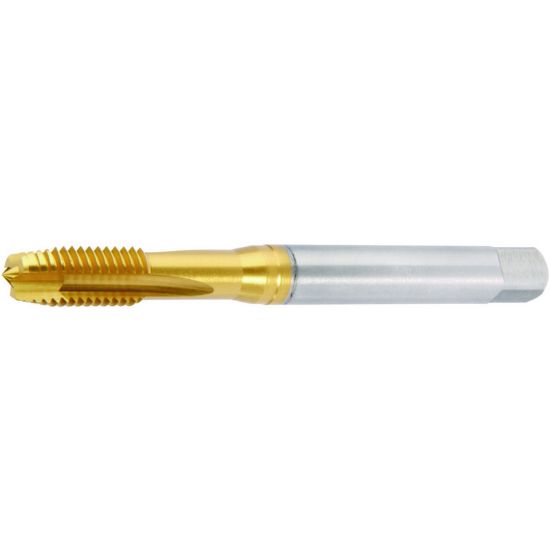

Picture of WIDIA/KENNAMETAL GT005003 M5-0.80MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT005003 M5-0.80MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT005003
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Package Size 1
Made In USA No
Performance Rating High Performance
Coating TiN
Shipping State Ohio
Dimensional Specifications
Tool Material Steel
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Length Type Standard
Thread Size M5
Dimension Standard DIN/DIN
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Thread Type Metric
Thread Pitch 0.80MM
Overall Len 2.7560 70.00MM
Tap Type Plug
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
