  • WIDIA/KENNAMETAL GT005002 M4-0.70MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

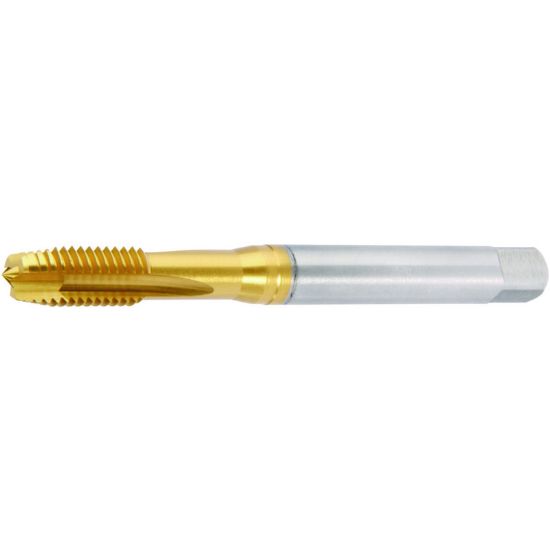

Picture of WIDIA/KENNAMETAL GT005002 M4-0.70MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT005002 M4-0.70MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT005002
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Ohio
Coating TiN
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 0.70MM
Tap Square 0.1340
Tap Chamfer 3.0P-5.5P
Thread Type Metric
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Type Plug
Tool Material Steel
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1770 4.50MM - #16
Flutes/Inserts 2
Length Type Standard
Thread Limit 6H
Dimension Standard DIN/DIN
Overall Len 2.4850 63.12MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
