  • WIDIA/KENNAMETAL GT005001 M3-0.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

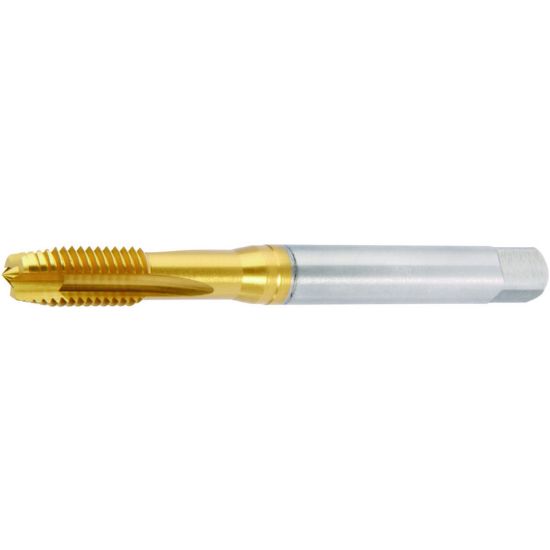

Picture of WIDIA/KENNAMETAL GT005001 M3-0.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

WIDIA/KENNAMETAL GT005001 M3-0.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDGT005001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1380 3.51MM
Tap Square 0.1060
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Flute Direction R - Right
Length Type Standard
Thread Size M3
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Dimension Standard DIN/DIN
Thread Type Metric
Overall Len 2.2050 56.01MM
Tap Type Plug
Tool Material Steel
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
