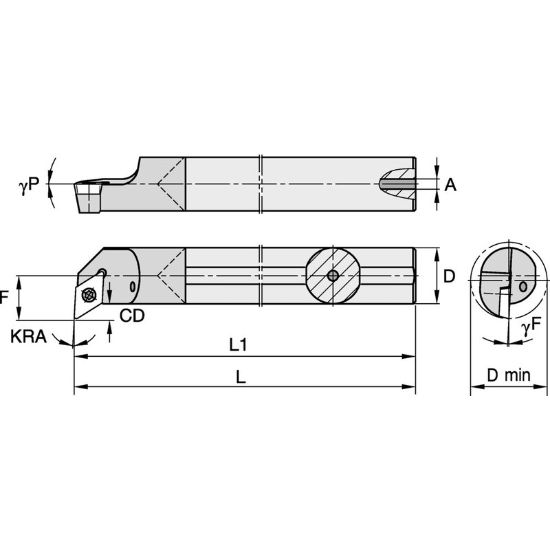

Picture of WIDIA/KENNAMETAL GCPI50085R Carbide 45.0° Insert Boring Bar 0.500

WIDIA/KENNAMETAL GCPI50085R Carbide 45.0° Insert Boring Bar 0.500

ANSI: GCPI50085R

ISO: GCPI50085R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2827811
Delivery date: 3-5 days
$456.48

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Details

CARBIDE SHANK PROFILING BAR

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Int.Turning
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Min Bore 0.6400
Flutes/Inserts 1
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Lead Angle 90°
Machine Side Connection Size 0.5000 12.70MM
Overall Len 8.0000 203.20MM
Insert Size Ic 06 "1.5"
Tool Material Carbide
Cutting & Machining Properties
Inter/Extern Internal
Insert Style GC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 45.0°
Hand R/L Right
