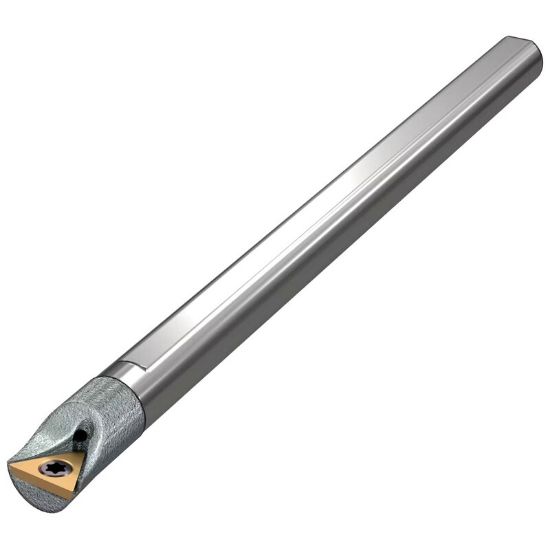

Picture of WIDIA/KENNAMETAL FCBI25045R Carbide Triangle Insert Boring Bar 0.250

WIDIA/KENNAMETAL FCBI25045R Carbide Triangle Insert Boring Bar 0.250

ANSI: FCBI25045R

ISO: FCBI25045R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2829897
Delivery date: 3-5 days
$268.31

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Flutes/Inserts 1
Insert Size Ic 07 "13"
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Overall Len 4.0000 101.60MM
Min Bore 0.2960
Lead Angle 90°
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Style TD
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Right
Coolant Thru Yes
Inter/Extern Internal
