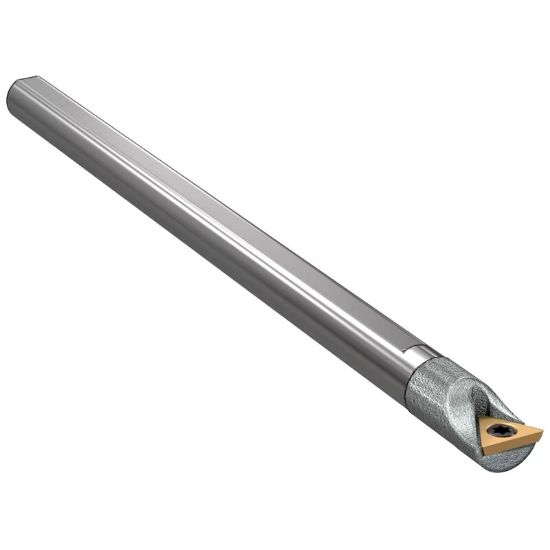

Picture of WIDIA/KENNAMETAL FCBI25045L Carbide Triangle Insert Boring Bar 0.250

WIDIA/KENNAMETAL FCBI25045L Carbide Triangle Insert Boring Bar 0.250

ANSI: FCBI25045L

ISO: FCBI25045L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2829903
Delivery date: 3-5 days
$268.29

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Flutes/Inserts 1
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Min Bore 0.2960
Overall Len 4.0000 101.60MM
Lead Angle 90°
Insert Size Ic 07 "13"
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Inter/Extern Internal
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TD
Hand R/L Left
