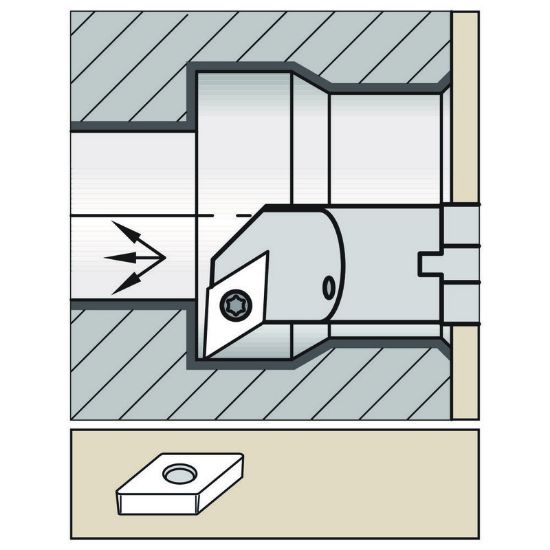

Picture of WIDIA/KENNAMETAL E20S-SDQCL11 55.0° Insert Boring Bar 0.787

WIDIA/KENNAMETAL E20S-SDQCL11 55.0° Insert Boring Bar 0.787

ANSI: E20S-SDQCL11

ISO: E20S-SDQCL11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2023622
Delivery date: 3-5 days
$687.20

Details

WIDIA LR SERIES BORING BAR

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Overall Len 9.8425 250.00MM
Flutes/Inserts 1
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 11 "32"
Shank/Pilot Dia 0.7874 20.00MM
Min Bore 0.9843
Clearance Angle 15.5°
Tool Material Carbide
Lead Angle 107.5°
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Cool Sply Type 1/8-27 NPT
Hand R/L Left
Coolant Thru Yes
