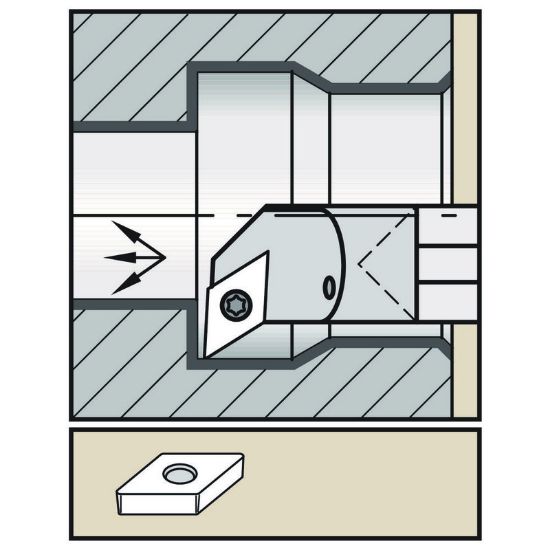

Picture of WIDIA/KENNAMETAL E12Q-SDUCR07 55.0° Insert Boring Bar 0.472

WIDIA/KENNAMETAL E12Q-SDUCR07 55.0° Insert Boring Bar 0.472

ANSI: E12Q-SDUCR07

ISO: E12Q-SDUCR07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2023611
Delivery date: 3-5 days
$394.91

Details

WIDIA LR SERIES BORING BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Pennsylvania
Application Int.Turning
Dimensional Specifications
Shank/Pilot Dia 0.4724 12.00MM
Min Bore 0.6299
Overall Len 7.0866 180.00MM
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 1
Clearance Angle 30.0°
Lead Angle 93°
Tool Material Carbide
Machine Side Connection Type Boring Bar
Insert Size Ic 07 "21"
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Coolant Thru Yes
Inter/Extern Internal
