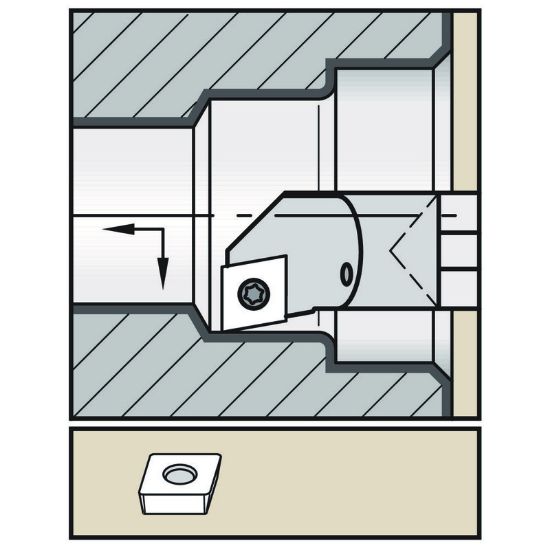

Picture of WIDIA/KENNAMETAL E06JSCFPR04 80.0° Insert Boring Bar 0.236

WIDIA/KENNAMETAL E06JSCFPR04 80.0° Insert Boring Bar 0.236

ANSI: E06JSCFPR04

ISO: E06J-SCFPR04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2010047
Delivery date: 3-5 days
$219.19

Details

WIDIA LR SERIES BORING BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Package Size 1
Application Int.Turning
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 04T1
Tool Material Carbide
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 4.3307 110.00MM
Flutes/Inserts 1
Lead Angle 90°
Min Bore 0.3150
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.2362 6.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CP
Hand R/L Right
Inter/Extern Internal
