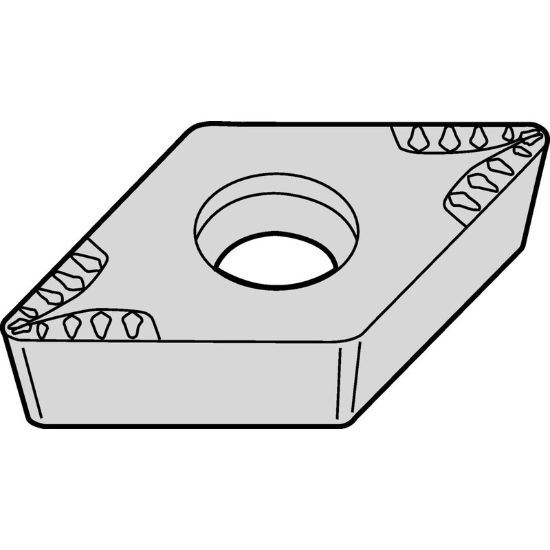

WIDIA/KENNAMETAL DCMT21.51MU WP25CT W00342 Insert 55.0° TiN + TiCN + Al2O3 0.016 Corner Radius

ANSI: DCMT21.51MU WP25CT W00342

ISO: DCMT070204MU W00342

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6128272
Delivery date: 3-5 days
$10.88

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Coated carbide. MT-CVD/CVD — TiN-TiCN-Al2O3. Light and medium machining. For cast irons.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Grade W00342
Insert Application Medium, Semi Finishing
Package Size 10
Application Turning Insert
Made In USA No
Insert Type Positive
Shipping State Pennsylvania
Coating TiN + TiCN + Al2O3
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Insert Size Ic 07 "21"
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Cutting & Machining Properties
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Cutting Edge Mat Carbide
