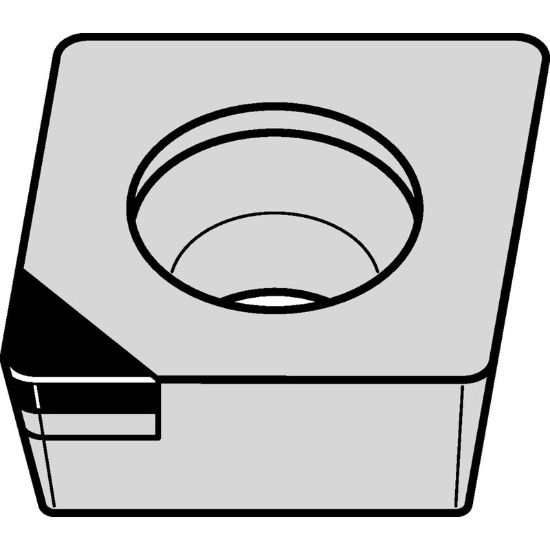

WIDIA/KENNAMETAL CPGW21.52FST WDN25U Insert 80.0° 0.031 Corner Radius

ANSI: CPGW21.52FST WDN25U

ISO: CPGW060208FST WDN25U

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3898753
Delivery date: 3-5 days
$88.81

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Grade and Coating Description

A multi-modal PCD grade with a range of grain sizes brazed onto a carbide substrate. Engineered for extreme abrasion resistance and good edge strength for demanding applications. An ideal choice for high-silicon aluminum alloys, bi-metallic (AL/GCI) materials, MMC, carbon-fiber reinforced plastics, and other abrasive non-metallic materials.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Medium
Application Turning Insert
Grade WDN25U
Made In USA Yes
Package Size 10
Insert/Tool Insert
Insert Type Positive
Shipping State Pennsylvania
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Corner Radius 0.0310 0.79MM
Insert Size Ic 06 "21"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CP
Cutting Edge Mat PCD
