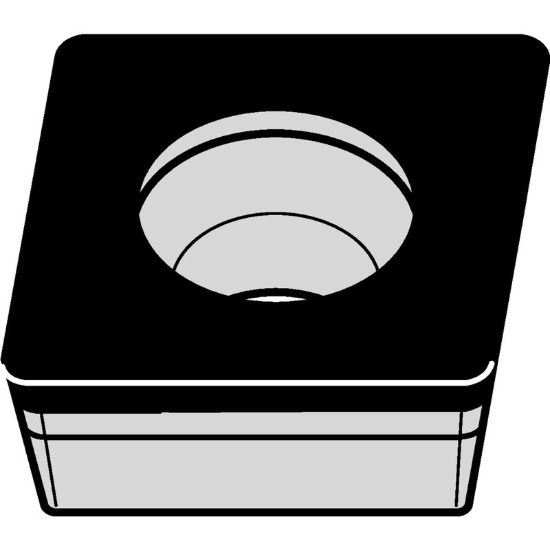

WIDIA/KENNAMETAL CPGW21.51S0415C WBH30P Insert 80.0° AlTiN 0.016 Corner Radius

ANSI: CPGW21.51S0415C WBH30P

ISO: CPGW060204S01015C WBH30P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6018082
Delivery date: 3-5 days
$88.99

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

A PVD-AlTiN coating over a low-content, CBN tip brazed onto a carbide insert. Designed for roughing to finishing in interrupted cuts on hardened steels (>45 HRC). Applied on gray cast iron, chilled irons, high-chrome alloyed steels, high-temp alloys, and sintered powdered metals.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Medium
Made In USA Yes
Shipping State Pennsylvania
Application Turning Insert
Grade WBH30P
Package Size 10
Insert/Tool Insert
Insert Type Positive
Coating AlTiN
Dimensional Specifications
Insert Size Ic 06 "21"
Corner Radius 0.0160 0.41MM
Cut Rating >50HRC Steel
Cutting & Machining Properties
Insert Style CP
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 80.0°
