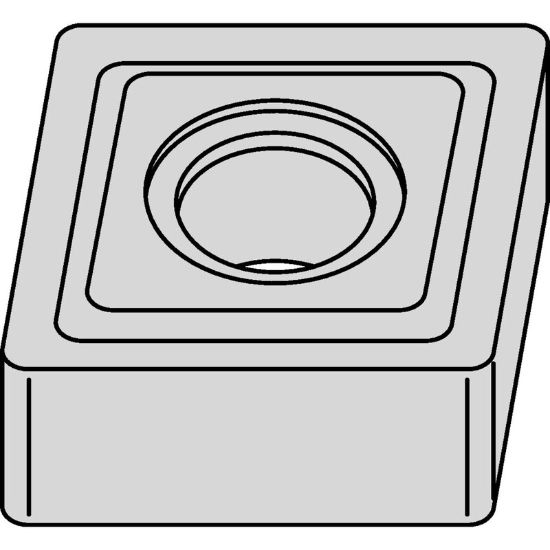

WIDIA/KENNAMETAL CNMG8667N TN30P Insert 80.0° TiN + TiCN + Al2O3 0.094 Corner Radius

ANSI: CNMG8667N TN30P

ISO: CNMG2509247N TN30P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4166457
Delivery date: 3-5 days
$28.71

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CVD, tough grade for steel.

Products specifications
Attribute name Attribute value
General Product Information
Grade TN30P
Shipping State Pennsylvania
Insert Application Medium, Roughing
Application Turning Insert
Package Size 10
Coating TiN + TiCN + Al2O3
Made In USA Yes
Insert/Tool Insert
Insert Type Negative
Dimensional Specifications
Insert Size Ic 25 "86"
Corner Radius 0.0940 2.39MM
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Cutting Edge Mat Carbide
