Picture of WIDIA/KENNAMETAL CCPM81525L Carbide 45.0° Insert Boring Bar 0.315

WIDIA/KENNAMETAL CCPM81525L Carbide 45.0° Insert Boring Bar 0.315

ANSI: CCPM81525L

ISO: CCPM81525L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3896022
Delivery date: 3-5 days
$322.51

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Details

CARBIDE SHANK PROFILING BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Application Int.Turning

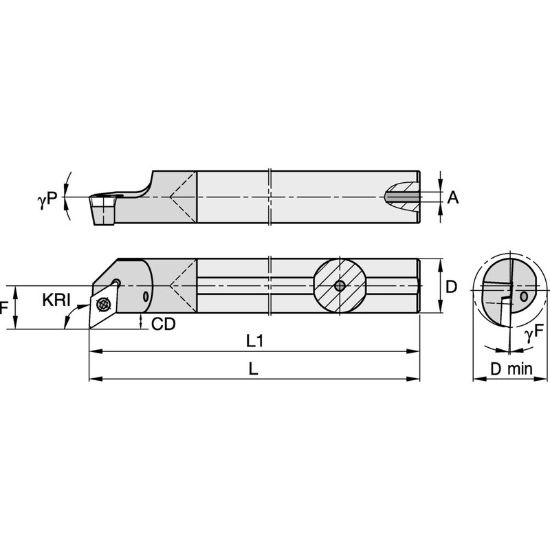

Dimensional Specifications
Machine Side Connection Type Boring Bar
Min Bore 0.4230
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 6.0000 152.40MM
Flutes/Inserts 1
Insert Size Ic 05 "1.2"
Tool Material Carbide
Machine Side Connection Size 0.3150 8.00MM
Lead Angle 95°
Cutting & Machining Properties
Insert Style GP
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Coolant Thru Yes
Inter/Extern Internal
