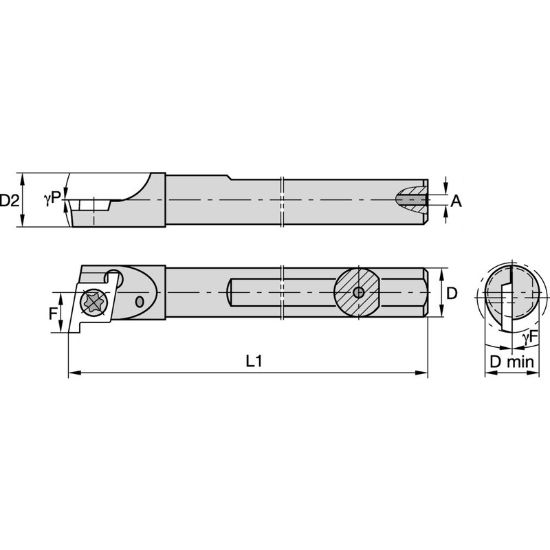

Picture of WIDIA/KENNAMETAL CCMI25040R Carbide Boring Bar 80.0° Boring Bar 0.250 Shank

WIDIA/KENNAMETAL CCMI25040R Carbide Boring Bar 80.0° Boring Bar 0.250 Shank

ANSI: CCMI25040R

ISO: CCMI25040R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2831838
Delivery date: 3-5 days
$304.07

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Details

CARBIDE SHANK GROOVING THREADING

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Application Back Turning, Int.Turning
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Flutes/Inserts 1
Min Bore 0.3120
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Insert Size Ic 16 "6"
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CD
Hand R/L Right
Inter/Extern Internal
