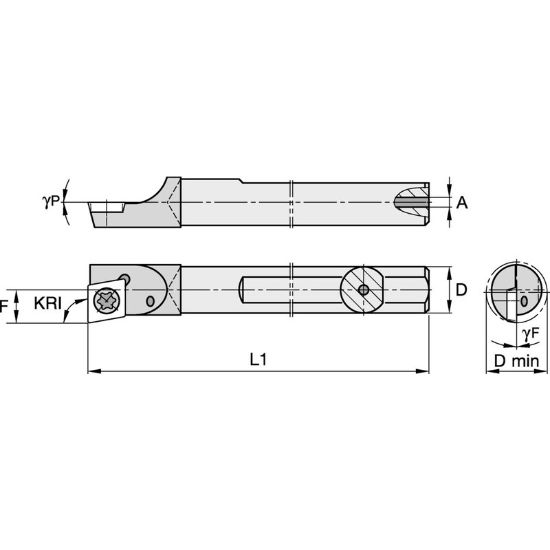

Picture of WIDIA/KENNAMETAL CCBM61005R Carbide 80.0° Insert Boring Bar 0.236

WIDIA/KENNAMETAL CCBM61005R Carbide 80.0° Insert Boring Bar 0.236

ANSI: CCBM61005R

ISO: CCBM61005R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2831821
Delivery date: 3-5 days
$289.23

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Int.Turning
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.2362 6.00MM
Insert Size Ic S4
Lead Angle 95°
Flutes/Inserts 1
Tool Material Carbide
Min Bore 0.2790
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 3.9500 100.33MM
Cutting & Machining Properties
Insert Style CD
Coolant Thru Yes
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
