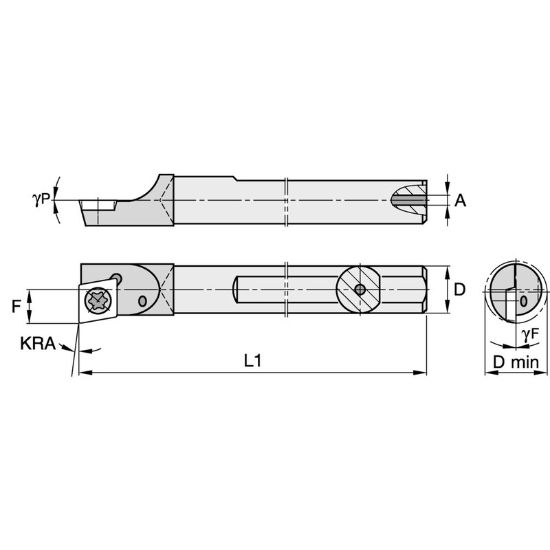

Picture of WIDIA/KENNAMETAL CCBI31265L Carbide 80.0° Insert Boring Bar 0.312

WIDIA/KENNAMETAL CCBI31265L Carbide 80.0° Insert Boring Bar 0.312

ANSI: CCBI31265L

ISO: CCBI31265L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2832265
Delivery date: 3-5 days
$330.87

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Pennsylvania
Insert Type Positive
Package Size 1
Application Int.Turning
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3125 7.94MM
Insert Size Ic 12
Flutes/Inserts 1
Lead Angle 95°
Tool Material Carbide
Min Bore 0.3560
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Style CD
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Coolant Thru Yes
