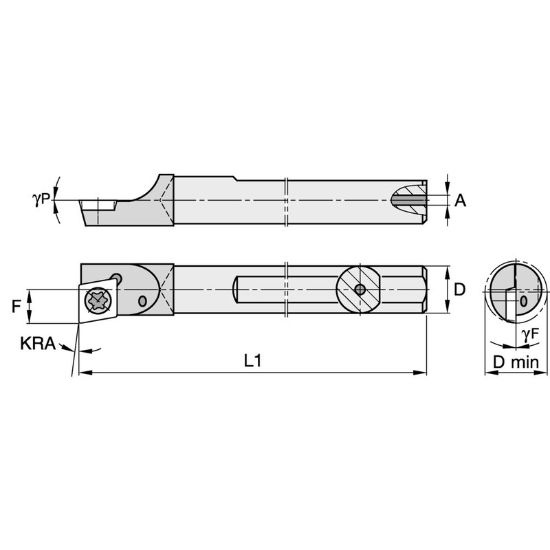

Picture of WIDIA/KENNAMETAL CCBI25065L Carbide 80.0° Insert Boring Bar 0.250

WIDIA/KENNAMETAL CCBI25065L Carbide 80.0° Insert Boring Bar 0.250

ANSI: CCBI25065L

ISO: CCBI25065L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2832033
Delivery date: 3-5 days
$334.49

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Turning
Insert Application General Purpose
Made In USA No
Shipping State Pennsylvania
Insert Type Positive
Package Size 1
Dimensional Specifications
Insert Size Ic 12
Flutes/Inserts 1
Min Bore 0.2850
Lead Angle 95°
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Machine Side Connection Type Boring Bar
Overall Len 6.0000 152.40MM
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern Internal
Insert Style CD
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
