Picture of WIDIA/KENNAMETAL CCBI2505001255R Carbide 80.0° Insert Boring Bar 0.500

WIDIA/KENNAMETAL CCBI2505001255R Carbide 80.0° Insert Boring Bar 0.500

ANSI: CCBI2505001255R

ISO: CCBI2505001255R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2832006
Delivery date: 3-5 days
$384.56

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Details

CARBIDE SHANK STEP BORING BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1

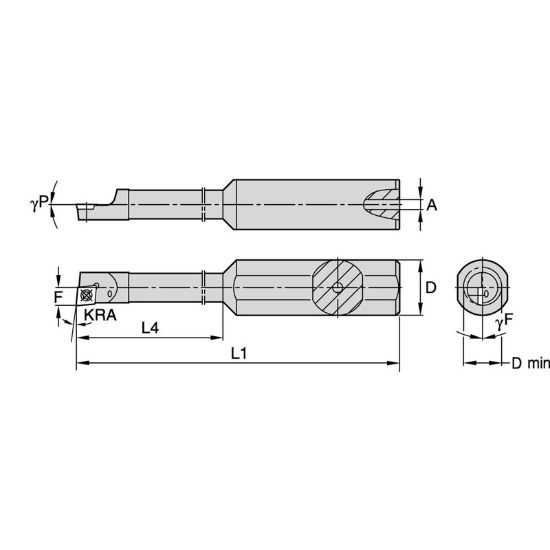

Dimensional Specifications
Lead Angle 95°
Machine Side Connection Size 0.5000 12.70MM
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Carbide
Overall Len 2.7500 69.85MM
Min Bore 0.2850
Insert Size Ic 12
Flutes/Inserts 1
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Inter/Extern Internal
Insert Style CD
Coolant Thru Yes
