Picture of WIDIA/KENNAMETAL CCBI25045R Carbide 80.0° Insert Boring Bar 0.250

WIDIA/KENNAMETAL CCBI25045R Carbide 80.0° Insert Boring Bar 0.250

ANSI: CCBI25045R

ISO: CCBI25045R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2832049
Delivery date: 3-5 days
$287.88

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive

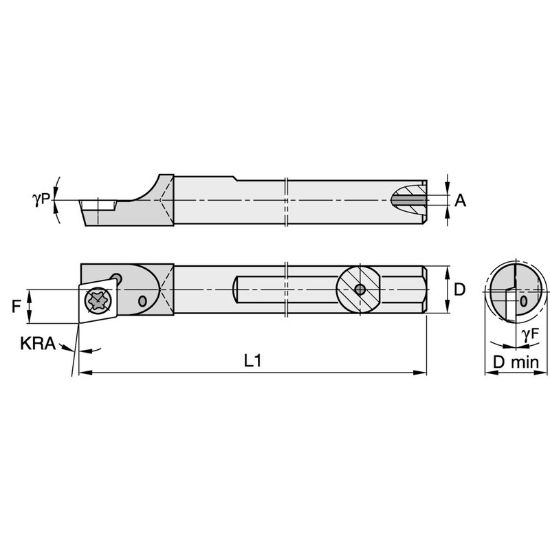

Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Insert Size Ic 12
Flutes/Inserts 1
Overall Len 4.0000 101.60MM
Min Bore 0.2850
Machine Side Connection Type Boring Bar
Lead Angle 95°
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style CD
Coolant Thru Yes
