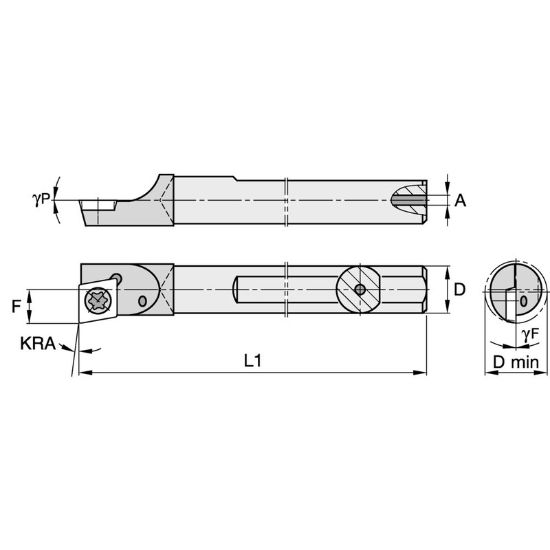

Picture of WIDIA/KENNAMETAL CCBI18018745R Carbide 80.0° Insert Boring Bar 0.187

WIDIA/KENNAMETAL CCBI18018745R Carbide 80.0° Insert Boring Bar 0.187

ANSI: CCBI18018745R

ISO: CCBI18018745R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2832281
Delivery date: 3-5 days
$287.88

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Package Size 1
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Shipping State Pennsylvania
Dimensional Specifications
Tool Material Carbide
Min Bore 0.2080
Insert Size Ic 12
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 1
Overall Len 4.0000 101.60MM
Lead Angle 95°
Machine Side Connection Size 0.1875 4.76MM
Cutting & Machining Properties
Insert Style CD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Inter/Extern Internal
