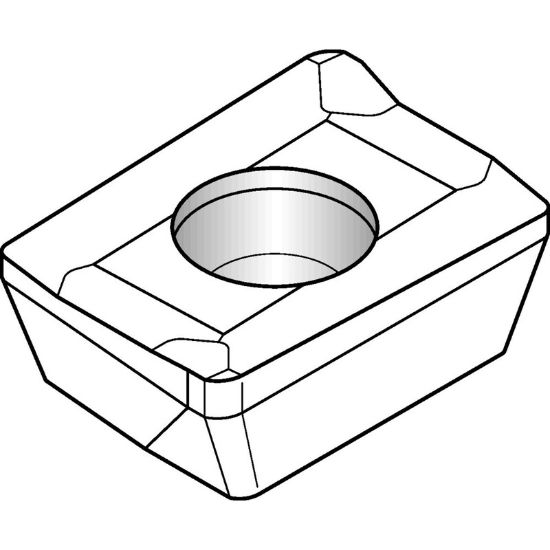

WIDIA/KENNAMETAL BDMT 11T308ERMS TN6425 Milling Insert Paralelagram TiCN 0.031 Corner Radius

ANSI: BDMT 11T308ERMS TN6425

ISO: BDMT11T308ERMS TN6425

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3577934
Delivery date: 3-5 days
$11.21

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Stainless steel, high temp alloy wet and dry ran.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Pennsylvania
Package Size 10
Insert/Tool Insert
Application Milling Insert
Insert Type Positive
Coating TiCN
Grade TN6425
Dimensional Specifications
Corner Radius 0.0313 0.80MM
Cut Rating High Temp, Stainless Steel
Insert Size Ic 11
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
Cutting Edge Mat Carbide
Hand R/L Right
