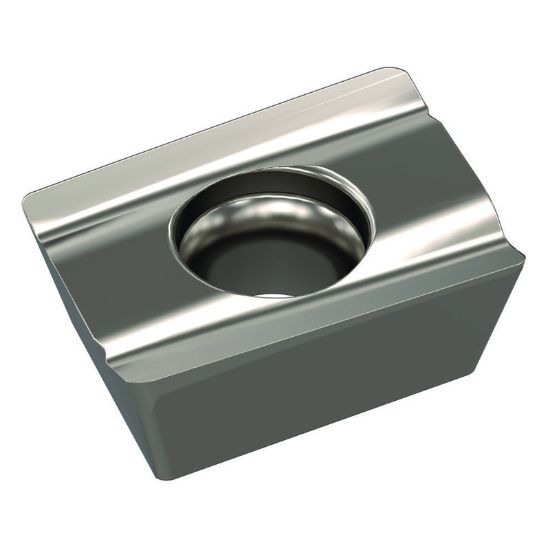

WIDIA/KENNAMETAL AONT10T308MM TN7535 Milling Insert Paralelagram TiN + TiCN + Al2O3 0.031 Corner Radius

ANSI: AONT10T308MM TN7535

ISO: AONT10T308MM TN7535

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2030453
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CVD multilayer for steels and cast irons for interupted cutting

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Shipping State Pennsylvania
Insert/Tool Insert
Application Milling Insert
Insert Application Roughing, Semi Finishing
Grade TN7535
Made In USA No
Coating TiN + TiCN + Al2O3
Insert Type Positive
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Insert Size Ic 10
Corner Radius 0.0313 0.80MM
Cutting & Machining Properties
Insert Style AO
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
