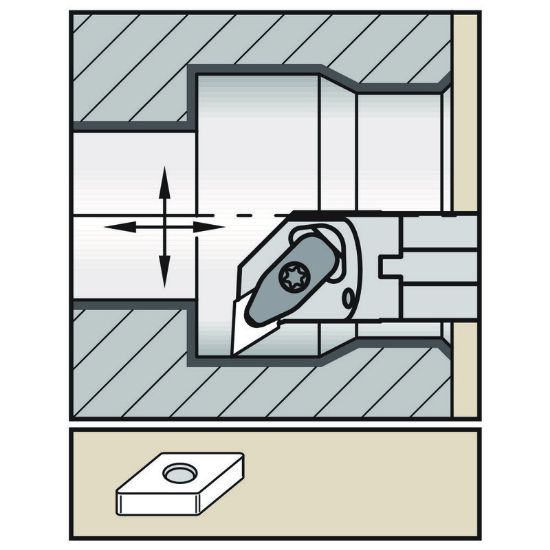

Picture of WIDIA/KENNAMETAL A40TDDUNR15KC06 55.0° Insert Boring Bar 1.574

WIDIA/KENNAMETAL A40TDDUNR15KC06 55.0° Insert Boring Bar 1.574

ANSI: A40TDDUNR15KC06

ISO: A40TDDUNR15KC06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5696215
Delivery date: 3-5 days
$377.16

Details

KENCLAMP STEEL BAR

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 1.5748 40.00MM
Overall Len 11.8110 300.00MM
Lead Angle 93.5°
Machine Side Connection Size 1.5748 40.00MM
Clearance Angle 30.0°
Tool Material Steel
Min Bore 1.9690
Insert Size Ic 15 "44"
Flutes/Inserts 1
Cutting & Machining Properties
Cool Sply Type 1/4-18 NPT
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern Internal
Coolant Thru Yes
