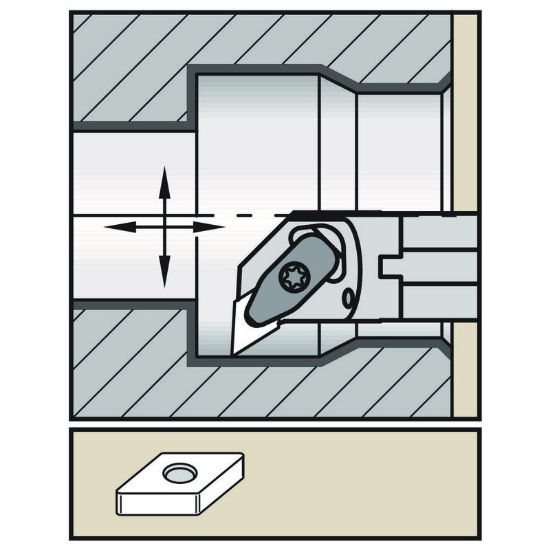

Picture of WIDIA/KENNAMETAL A40TDDUNL15KC06 55.0° Insert Boring Bar 1.574

WIDIA/KENNAMETAL A40TDDUNL15KC06 55.0° Insert Boring Bar 1.574

ANSI: A40TDDUNL15KC06

ISO: A40TDDUNL15KC06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5696216
Delivery date: 3-5 days
$377.16

Details

KENCLAMP STEEL BAR

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Lead Angle 93.5°
Machine Side Connection Size 1.5748 40.00MM
Clearance Angle 30.0°
Min Bore 1.9690
Flutes/Inserts 1
Tool Material Steel
Insert Size Ic 15 "44"
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 1.5748 40.00MM
Overall Len 11.8110 300.00MM
Cutting & Machining Properties
Hand R/L Left
Insert Style DN
Coolant Thru Yes
Inter/Extern Internal
Cool Sply Type 1/4-18 NPT
Insert Shape/Cutter Pocket Shape 55.0°
