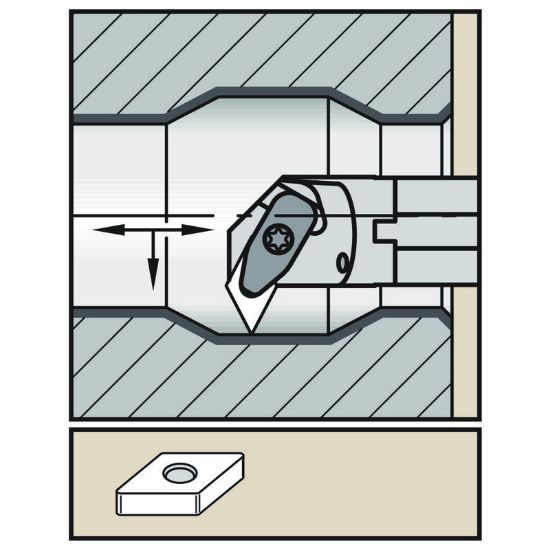

Picture of WIDIA/KENNAMETAL A40TDDPNR15KC06 55.0° Insert Boring Bar 1.574

WIDIA/KENNAMETAL A40TDDPNR15KC06 55.0° Insert Boring Bar 1.574

ANSI: A40TDDPNR15KC06

ISO: A40TDDPNR15KC06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5696082
Delivery date: 3-5 days
$377.16

Details

D-STYLE CLAMPING BORING BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1
Application Int.Turning
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Min Bore 2.0470
Machine Side Connection Type Boring Bar
Overall Len 11.8110 300.00MM
Insert Size Ic 15 "44"
Lead Angle 62.5°
Clearance Angle 57.0°
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 1
Machine Side Connection Size 1.5748 40.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Inter/Extern Internal
Cool Sply Type 1/4-18 NPT
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
