Picture of WIDIA/KENNAMETAL A32SDWLNL08KC04 Trigon Insert Boring Bar 1.259

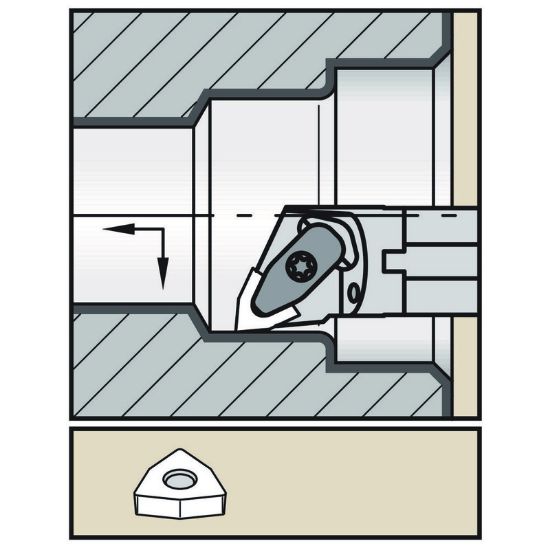

WIDIA/KENNAMETAL A32SDWLNL08KC04 Trigon Insert Boring Bar 1.259

ANSI: A32SDWLNL08KC04

ISO: A32SDWLNL08KC04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5696282
Delivery date: 3-5 days
$295.76

Details

D-STYLE CLAMPING BORING BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Application Int.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Min Bore 1.5750
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 1
Lead Angle 95°
Insert Size Ic 12 "43"
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2598 32.00MM
Overall Len 9.8430 250.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Coolant Thru Yes
Insert Style WN
Hand R/L Left
Cool Sply Type 1/4-18 NPT
Inter/Extern Internal
