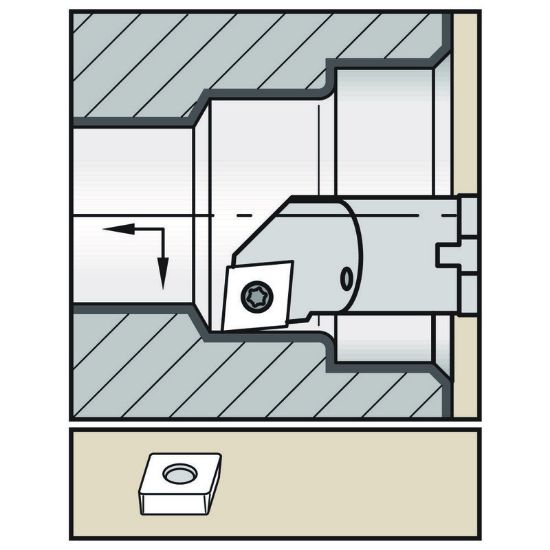

Picture of WIDIA/KENNAMETAL A25TSCLCR12 80.0° Insert Boring Bar 0.984

WIDIA/KENNAMETAL A25TSCLCR12 80.0° Insert Boring Bar 0.984

ANSI: A25TSCLCR12

ISO: A25TSCLCR12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3883265
Delivery date: 3-5 days
$239.23

Details

LR SERIES BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Lead Angle 95°
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Min Bore 1.2600
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 12 "43"
Machine Side Connection Type Boring Bar
Overall Len 11.8110 300.00MM
Flutes/Inserts 1
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Coolant Thru Yes
Insert Style CC
Cool Sply Type 1/4-18 NPT
Inter/Extern Internal
