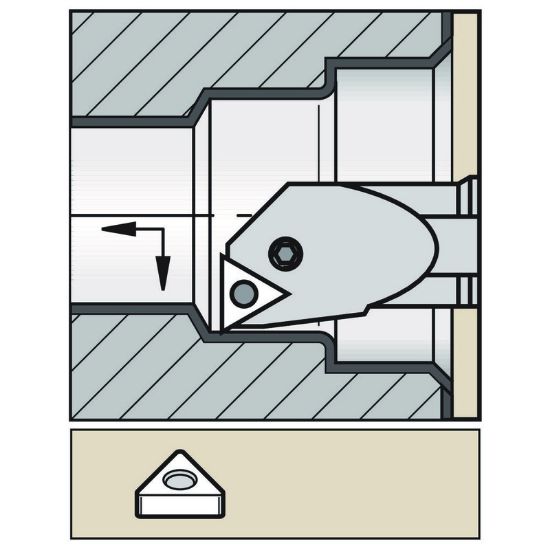

Picture of WIDIA/KENNAMETAL A25TPTFNR16 Triangle Insert Boring Bar 0.984

WIDIA/KENNAMETAL A25TPTFNR16 Triangle Insert Boring Bar 0.984

ANSI: A25TPTFNR16

ISO: A25TPTFNR16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3883263
Delivery date: 3-5 days
$250.45

Details

KENLEVER STEEL BAR

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Insert Size Ic 16 "33"
Machine Side Connection Type Boring Bar
Overall Len 11.8110 300.00MM
Min Bore 1.2598
Lead Angle 91°
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 1
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cool Sply Type 1/4-18 NPT
Insert Style TN
Hand R/L Right
Inter/Extern Internal
Coolant Thru Yes
