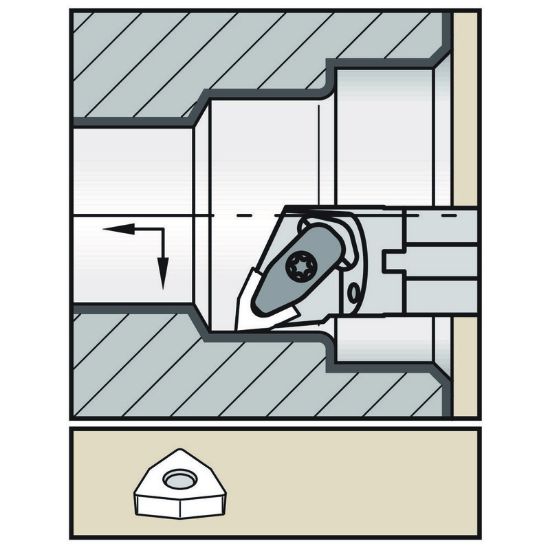

Picture of WIDIA/KENNAMETAL A25RDWLNR08KC04 Trigon Insert Boring Bar 0.984

WIDIA/KENNAMETAL A25RDWLNR08KC04 Trigon Insert Boring Bar 0.984

ANSI: A25RDWLNR08KC04

ISO: A25RDWLNR08KC04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5696269
Delivery date: 3-5 days
$268.13

Details

D-STYLE CLAMPING BORING BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Int.Turning
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Boring Bar
Overall Len 7.8740 200.00MM
Flutes/Inserts 1
Lead Angle 95°
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 12 "43"
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Min Bore 1.2600
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type 1/4-18 NPT
Insert Style WN
Inter/Extern Internal
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
