Picture of WIDIA/KENNAMETAL A25RDTFNR16KC04 Triangle Insert Boring Bar 0.984

WIDIA/KENNAMETAL A25RDTFNR16KC04 Triangle Insert Boring Bar 0.984

ANSI: A25RDTFNR16KC04

ISO: A25RDTFNR16KC04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5696219
Delivery date: 3-5 days
$269.64

Details

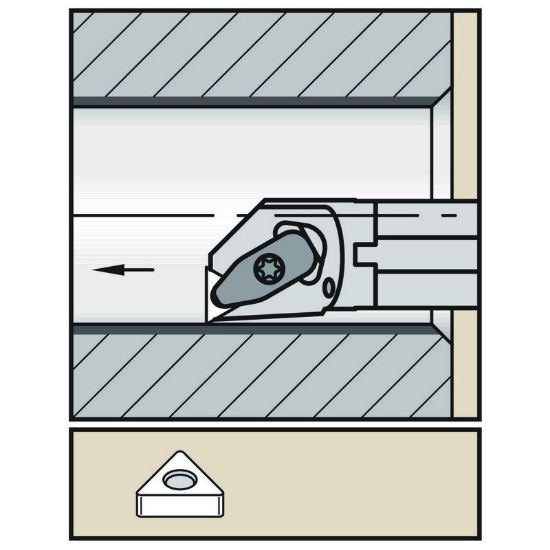

D-STYLE CLAMPING BORING BAR

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Application Int.Turning
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 7.8740 200.00MM
Flutes/Inserts 1
Lead Angle 91°
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 16 "33"
Tool Material Steel
Min Bore 1.2600
Cutting & Machining Properties
Inter/Extern Internal
Coolant Thru Yes
Insert Style TN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Cool Sply Type 1/4-18 NPT
