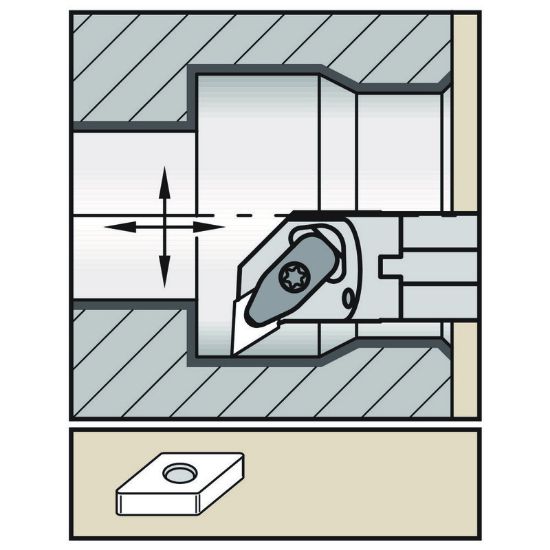

Picture of WIDIA/KENNAMETAL A25RDDUNR11KC04 55.0° Insert Boring Bar 0.984

WIDIA/KENNAMETAL A25RDDUNR11KC04 55.0° Insert Boring Bar 0.984

ANSI: A25RDDUNR11KC04

ISO: A25RDDUNR11KC04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5696089
Delivery date: 3-5 days
$294.87

Details

KENCLAMP STEEL BAR

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Application Int.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 7.8740 200.00MM
Flutes/Inserts 1
Tool Material Steel
Min Bore 1.2600
Clearance Angle 30.0°
Lead Angle 93.5°
Insert Size Ic 11 "33"
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern Internal
Coolant Thru Yes
Hand R/L Right
Cool Sply Type 1/4-18 NPT
