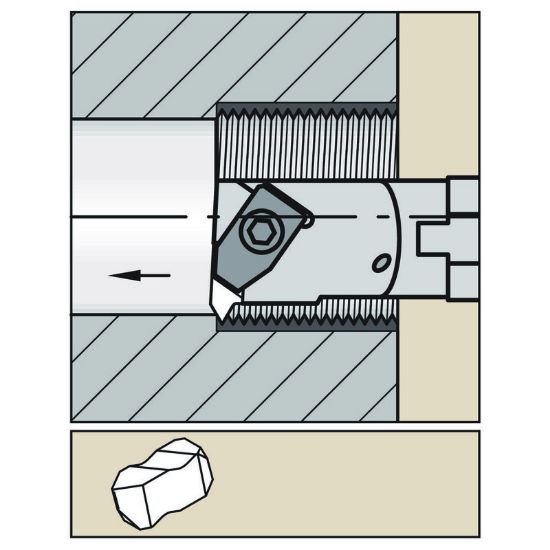

Picture of WIDIA/KENNAMETAL A24NEL3 Top Notch Insert Boring Bar 1.500

WIDIA/KENNAMETAL A24NEL3 Top Notch Insert Boring Bar 1.500

ANSI: A24NEL3

ISO: A24NEL3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3632128
Delivery date: 3-5 days
$359.32
Products specifications
Attribute name Attribute value
General Product Information
Application Int.Threading, Int.Grooving
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 1
Overall Len 14.0000 355.60MM
Insert Size Ic 3
Machine Side Connection Type Boring Bar
Min Bore 2.0000
Tool Material Steel
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Left
Insert Style TOP NOTCH
Insert Shape/Cutter Pocket Shape Top Notch
Coolant Thru Yes
Cool Sply Type 1/4-18 NPT
