Picture of WIDIA/KENNAMETAL A10KSDUCR07 55.0° Insert Boring Bar 0.393

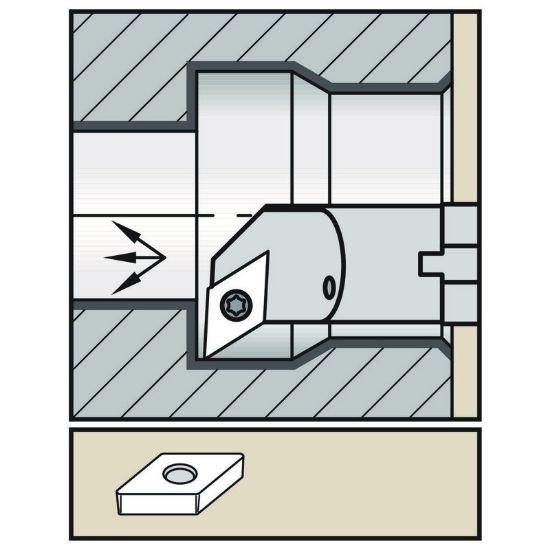

WIDIA/KENNAMETAL A10KSDUCR07 55.0° Insert Boring Bar 0.393

ANSI: A10KSDUCR07

ISO: A10KSDUCR07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3883297
Delivery date: 3-5 days
$111.08

Details

LR SERIES BAR

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Int.Turning
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Boring Bar
Insert Size Ic 07 "21"
Min Bore 0.5118
Overall Len 4.9213 125.00MM
Flutes/Inserts 1
Lead Angle 93°
Shank/Pilot Dia 0.3937 10.00MM
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Size 0.3937 10.00MM
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern Internal
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
