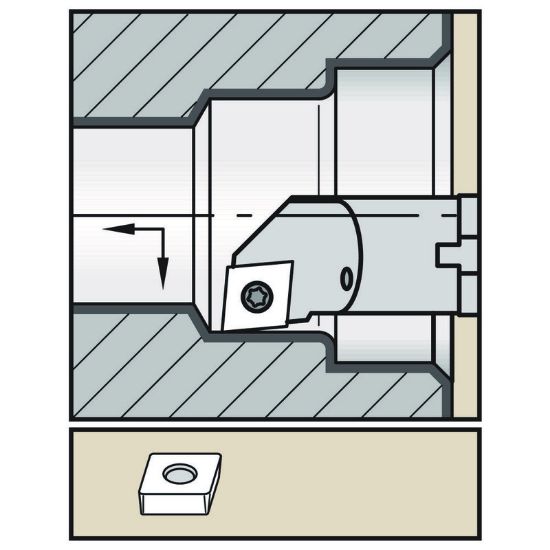

Picture of WIDIA/KENNAMETAL A10KSCLCL06 80.0° Insert Boring Bar 0.393

WIDIA/KENNAMETAL A10KSCLCL06 80.0° Insert Boring Bar 0.393

ANSI: A10KSCLCL06

ISO: A10KSCLCL06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3883284
Delivery date: 3-5 days
$133.45

Details

LR SERIES BAR

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Package Size 1
Insert Type Positive
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Lead Angle 95°
Flutes/Inserts 1
Min Bore 0.5120
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Tool Material Steel
Machine Side Connection Size 0.3937 10.00MM
Overall Len 4.9210 124.99MM
Shank/Pilot Dia 0.3937 10.00MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Coolant Thru Yes
