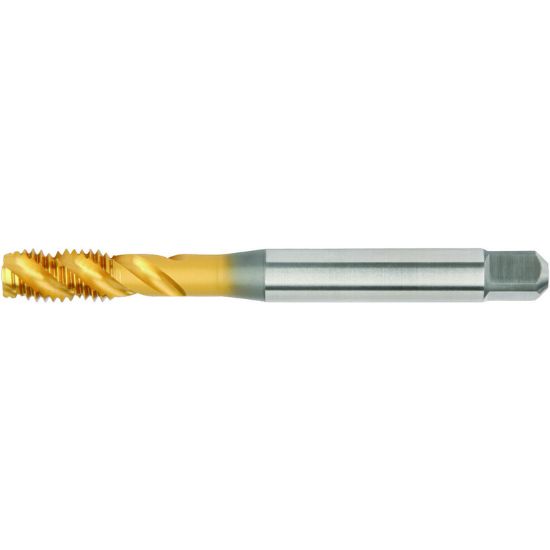

WIDIA/KENNAMETAL 6172796 1/4-20.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6172796
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Ohio
Coating TiN
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Pitch 20.00TPI
Thread Type NC/UNC
Tool Material Steel
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Size 1/4"
Thread Limit 2B
Overall Len 3.1560 80.16MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1772 4.50MM
Tap Style Cut Spiral Flute
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1340
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
