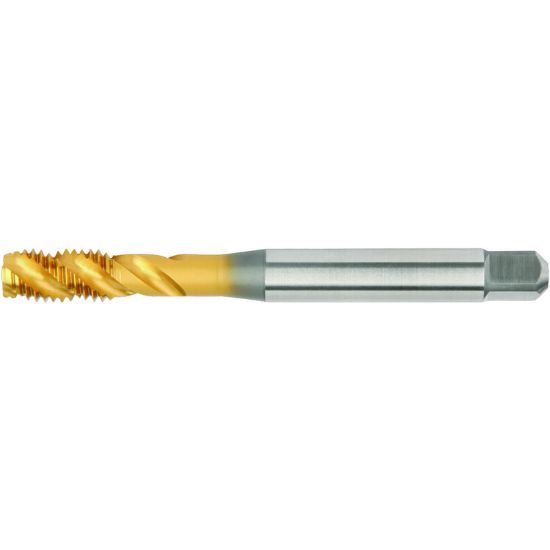

WIDIA/KENNAMETAL 6172794 1/4-20.00TPI Cut Spiral Flute Plug 3.5P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6172794
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Coating TiN
Performance Rating High Performance
Made In USA No
Package Size 1
Shipping State Ohio
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Machine Side Connection Type Tap Collet
Dimension Standard DIN/DIN
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tool Material Steel
Shank/Pilot Dia 0.2756 7.00MM
Tap Style Cut Spiral Flute
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction R - Right
Tap Square 0.2170
Length Type Standard
Thread Size 1/4"
Thread Limit 2B
Overall Len 3.1560 80.16MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
