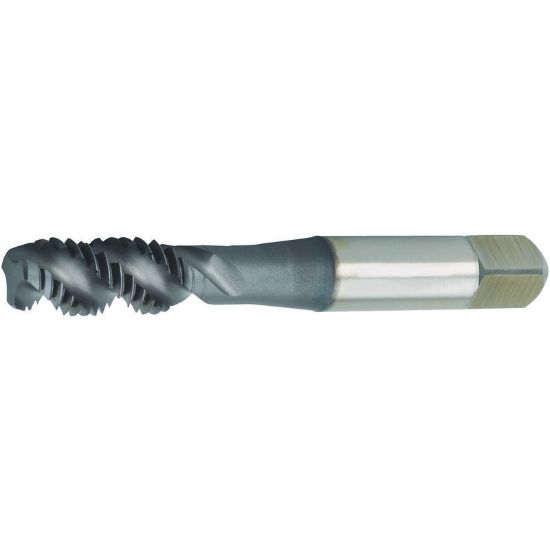

WIDIA/KENNAMETAL 6140201 5/16-18.00TPI Over Sized Mod Bottom Mod Bottom 2.5P-3.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6140201
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Coating DLC
Application Blind Hole Tapping, Mod Bottom Tapping, Over Sized Tapping, Tapping
Made In USA No
Performance Rating High Performance
Package Size 1
Shipping State Ohio
Dimensional Specifications
Thread Pitch 18.00TPI
Tap Type Mod Bottom
Thread Limit GH7 +0.0035
Thread Size 5/16"
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 2.5P-3.0P
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Thread Type NC/UNC
Tap Style Over Sized Mod Bottom
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
