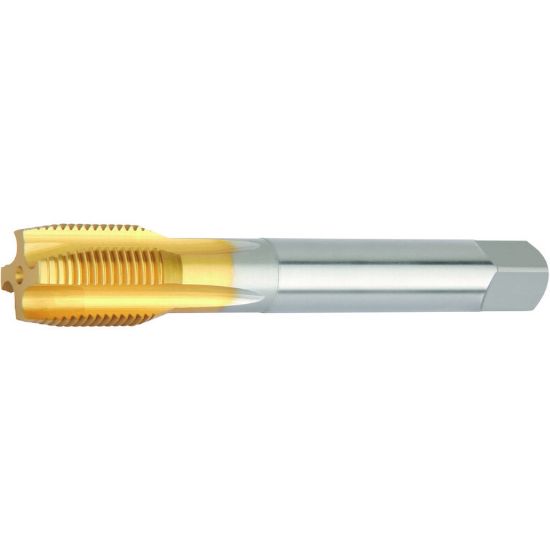

WIDIA/KENNAMETAL 6058811 1-11.00TPI Pipe Spiral Flute Pipe HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6058811
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Spiral Flute Pipe, Pipe Tapping, Tapping
Shipping State Ohio
Made In USA No
Coating TiN
Package Size 1
Dimensional Specifications
Thread Type BSP
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Overall Len 6.2990 159.99MM
Tap Square 0.7900
Tap Type Pipe
Thread Size 1"
Dimension Standard DINSI
Shank/Pilot Dia 0.9843 25.00MM
Tool Material Steel
Flutes/Inserts 5
Thread Pitch 11.00TPI
Thread Limit PIPE
Drill Range 1.2106 30.75MM
Tap Style Pipe Spiral Flute
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
