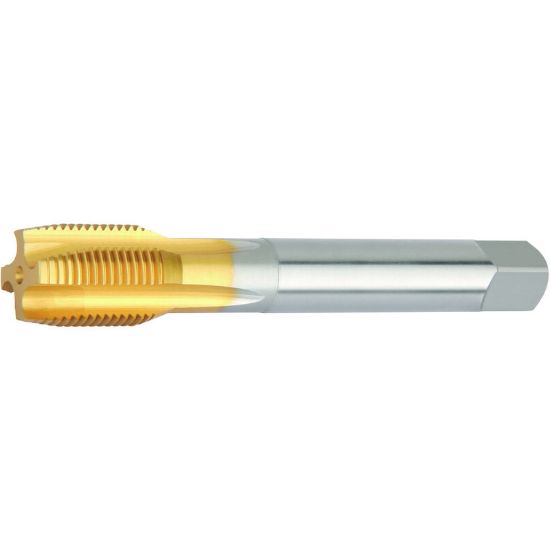

WIDIA/KENNAMETAL 6058800 1-11.00TPI Pipe Spiral Flute Pipe HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6058800
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Shipping State Ohio
Performance Rating High Performance
Coating DLC
Package Size 1
Made In USA No
Dimensional Specifications
Tap Type Pipe
Shank/Pilot Dia 0.9840 24.99MM
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Flutes/Inserts 5
Thread Size 1"
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Overall Len 6.2990 159.99MM
Drill Range 1.2106 30.75MM
Tap Square 0.7900
Thread Type BSP
Tool Material Steel
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
