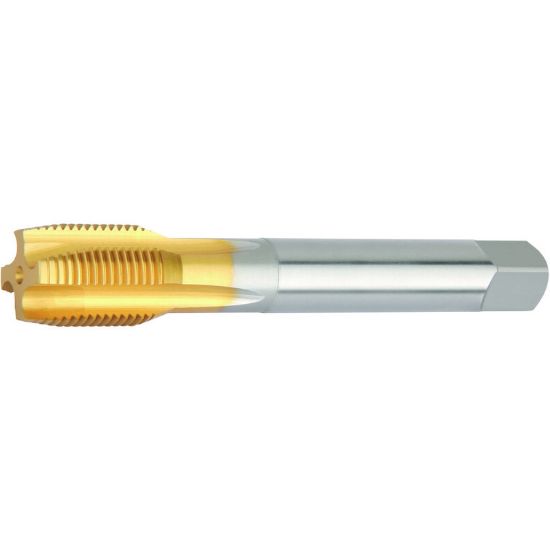

WIDIA/KENNAMETAL 6058799 7/8-14.00TPI Pipe Spiral Flute Pipe HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6058799
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Spiral Flute Pipe, Tapping
Package Size 1
Shipping State Ohio
Coating TiN
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Overall Len 5.9060 150.01MM
Tap Square 0.7100
Tap Style Pipe Spiral Flute
Tap Type Pipe
Tool Material Steel
Drill Range 1.1122 28.25MM
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Thread Size 7/8"
Thread Pitch 14.00TPI
Shank/Pilot Dia 0.8661 22.00MM
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Type BSP
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
