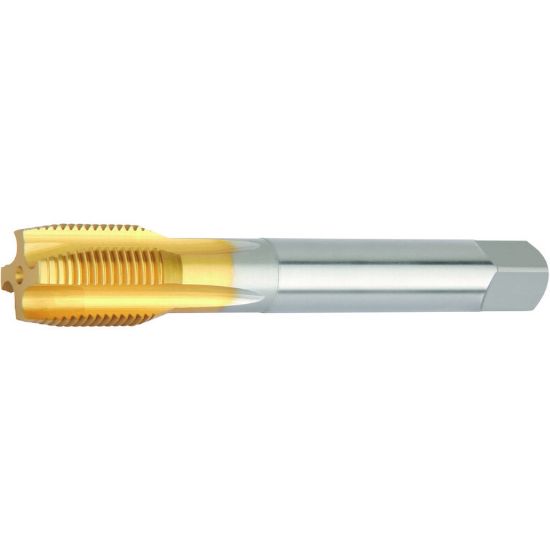

WIDIA/KENNAMETAL 6058798 7/8-14.00TPI Pipe Spiral Flute Pipe HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6058798
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Package Size 1
Coating DLC
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Drill Range 1.1122 28.25MM
Thread Size 7/8"
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Dimension Standard DINSI
Overall Len 5.9060 150.01MM
Flutes/Inserts 4
Tap Style Pipe Spiral Flute
Shank/Pilot Dia 0.8661 22.00MM
Thread Pitch 14.00TPI
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Tap Square 0.7100
Tap Type Pipe
Thread Type BSP
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
