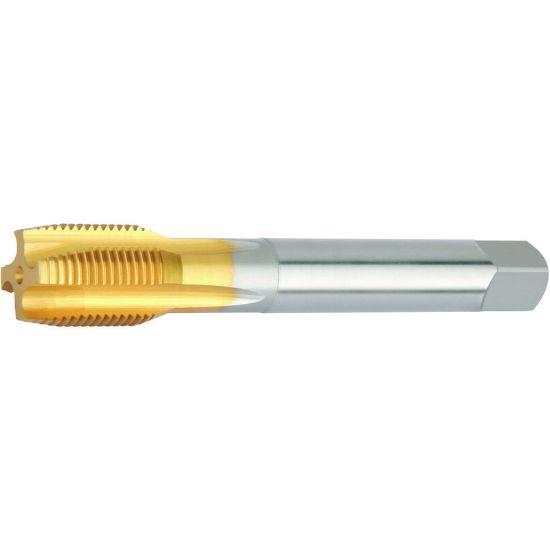

WIDIA/KENNAMETAL 6058797 3/4-14.00TPI Pipe Spiral Flute Pipe HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6058797
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Coating TiN
Shipping State Ohio
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Shank/Pilot Dia 0.7870 19.99MM
Machine Side Connection Type Tap Collet
Tap Type Pipe
Tool Material Steel
Thread Limit PIPE
Overall Len 5.5120 140.00MM
Tap Style Pipe Spiral Flute
Thread Type BSP
Flute Direction R - Right
Drill Range 0.9646 24.50MM
Length Type Standard
Thread Size 3/4"
Dimension Standard DINSI
Flutes/Inserts 4
Tap Square 0.6300
Thread Pitch 14.00TPI
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
