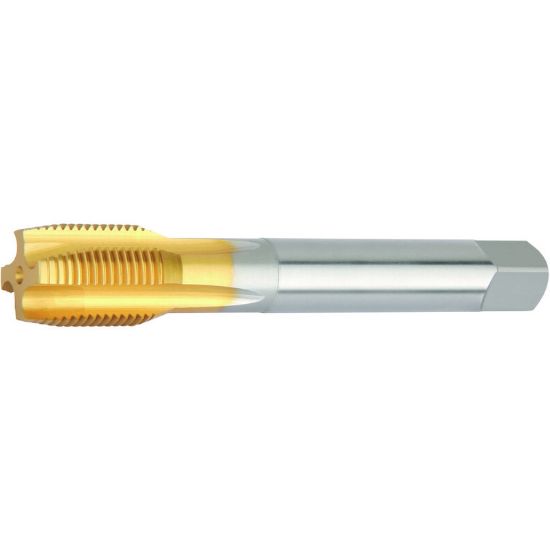

WIDIA/KENNAMETAL 6058793 5/8-14.00TPI Pipe Spiral Flute Pipe HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6058793
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Made In USA No
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Coating DLC
Dimensional Specifications
Shank/Pilot Dia 0.7090 18.01MM
Thread Size 5/8"
Thread Pitch 14.00TPI
Thread Type BSP
Flute Direction R - Right
Length Type Standard
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Type Pipe
Dimension Standard DINSI
Flutes/Inserts 4
Tap Style Pipe Spiral Flute
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Tap Square 0.5710
Tool Material Steel
Overall Len 4.9210 124.99MM
Drill Range 0.8268 21.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
