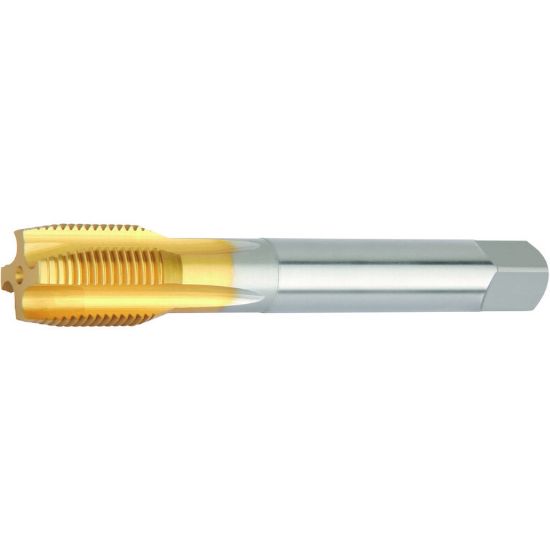

WIDIA/KENNAMETAL 6058791 1/2-14.00TPI Pipe Spiral Flute Pipe HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6058791
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Coating DLC
Package Size 1
Application Spiral Flute Pipe, Pipe Tapping, Tapping
Shipping State Ohio
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Thread Pitch 14.00TPI
Shank/Pilot Dia 0.6300 16.00MM
Thread Type BSP
Tool Material Steel
Overall Len 4.9210 124.99MM
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Size 1/2"
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Tap Square 0.4720
Tap Type Pipe
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
