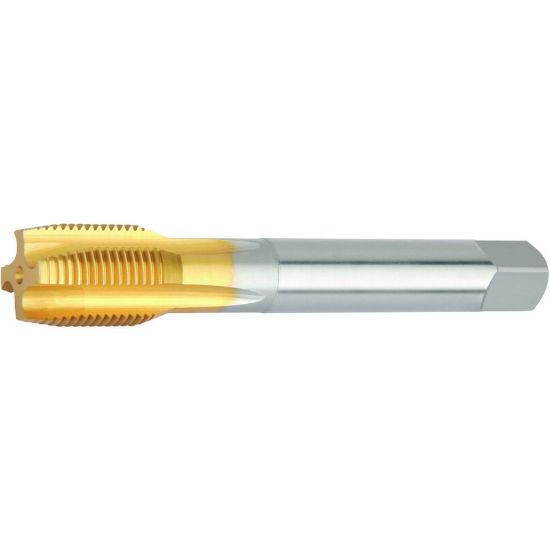

WIDIA/KENNAMETAL 6058790 3/8-19.00TPI Pipe Spiral Flute Pipe HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6058790
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Spiral Flute Pipe
Package Size 1
Performance Rating High Performance
Made In USA No
Coating TiN
Shipping State Ohio
Dimensional Specifications
Thread Pitch 19.00TPI
Tool Material Steel
Thread Size 3/8"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Thread Type BSP
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Shank/Pilot Dia 0.4720 11.99MM
Overall Len 3.9450 100.20MM
Tap Type Pipe
Drill Range 0.6004 15.25MM
Tap Square 0.3540
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
