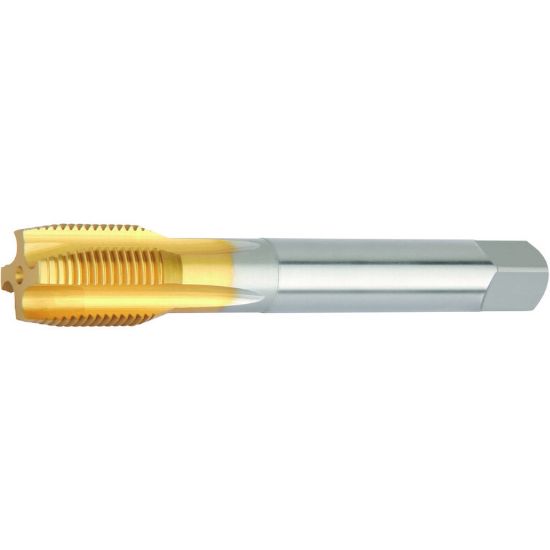

WIDIA/KENNAMETAL 6058788 3/8-19.00TPI Pipe Spiral Flute Pipe HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6058788
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating High Performance
Shipping State Ohio
Coating DLC
Made In USA No
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Type Pipe
Thread Pitch 19.00TPI
Tool Material Steel
Shank/Pilot Dia 0.4720 11.99MM
Overall Len 3.9450 100.20MM
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Thread Type BSP
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Size 3/8"
Dimension Standard DINSI
Tap Style Pipe Spiral Flute
Drill Range 0.6004 15.25MM
Tap Square 0.3540
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
