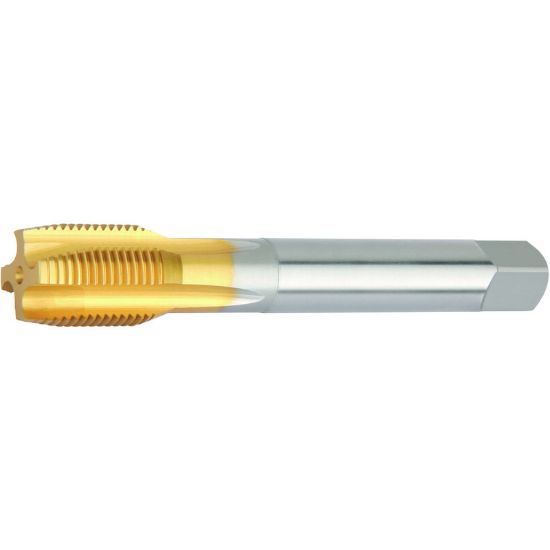

WIDIA/KENNAMETAL 6058786 1/4-19.00TPI Pipe Spiral Flute Pipe HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6058786
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Spiral Flute Pipe, Tapping
Shipping State Ohio
Performance Rating High Performance
Made In USA No
Coating DLC
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Dimension Standard DINSI
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Pitch 19.00TPI
Tap Square 0.3540
Thread Size 1/4"
Overall Len 3.9450 100.20MM
Flutes/Inserts 3
Thread Type BSP
Tool Material Steel
Length Type Standard
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Shank/Pilot Dia 0.4330 11.00MM
Drill Range 0.4646 11.80MM
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
