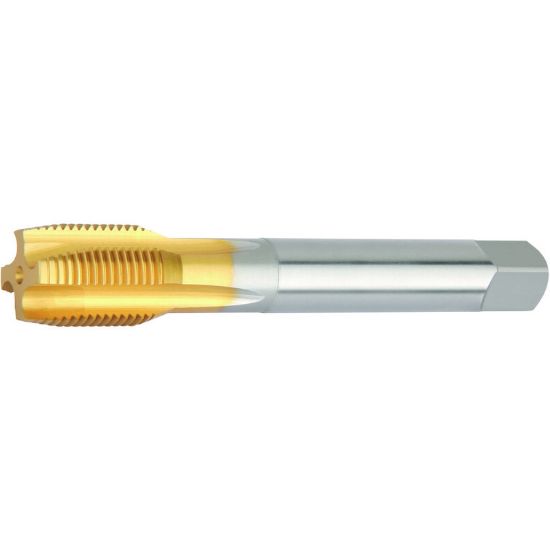

WIDIA/KENNAMETAL 6058785 1/8-28.00TPI Pipe Spiral Flute Pipe HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6058785
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Spiral Flute Pipe, Tapping
Made In USA No
Package Size 1
Shipping State Ohio
Coating TiN
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 28.00TPI
Shank/Pilot Dia 0.2760 7.01MM
Flutes/Inserts 3
Tap Square 0.2160
Thread Type BSP
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Drill Range 0.3642 9.25MM
Tool Material Steel
Overall Len 3.5430 89.99MM
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Thread Size 1/8"
Tap Type Pipe
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
